configuring TLV320AIC3007 by connecting directly to the PC

I am using TLV320AIC3007 as a mixer in an audio receiving circuit. I wanted to know how to program it  externally through a pc that is the software/tool required and how to make a programming port for the same. I do not want to use the existing TLV320AIC3007EVM-K as I am just procuring only the asic(aic3007) to be soldered onto another board for my project.

Image may be NSFW.
Clik here to view.

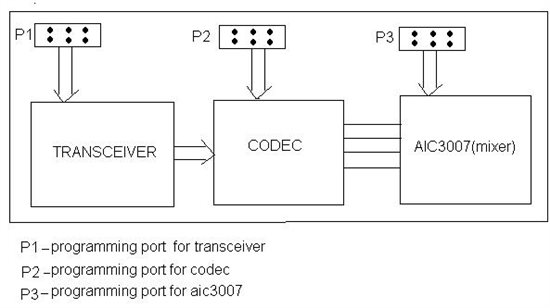

The above block diagram is the rough representation of the design I need. If i have the programming facility available on the newly soldered board I can modify the settings of the asic as per my requirements.
