We used TINA-ti simulation the THS4304 USB D+ signal enlarge application. Please refer to the below circuit & wavefrom. The signal enlarge signal twice. Why we test the THS4304 circuit output wavefrom amplitude same as input?
Step1.

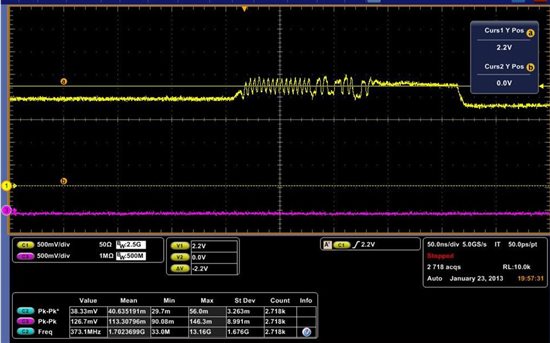

Input USB D+ Signal

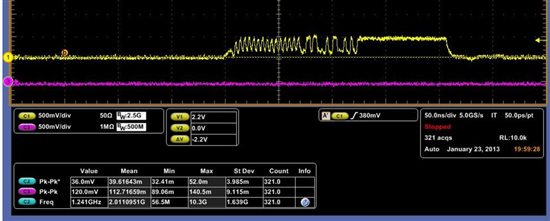

Step 2 The THS4304 output wavefrom.
Thanks for your help~
Eric Lo
