Part Number:IWR1642BOOST
Tool/software: Code Composer Studio
Hi,
I am trying to download the latest version of mmWave industrial toolbox using code composer studio and getting the following error at the end of download " {"code":"ECONNRESET","errno":"ECONNRESET",syscall":"read"}. Can you please look into it ? Also, how can I avoid having this error ?
Thanks.
Part Number:CC2538
We are using the 513K version in our development lab (so we can't verify right now) but looking at the memory map it looks like the Zstack version 3.0.1 stack is still well under 128K, which means that we could go down to 256K flash and preserve using OTA download.
We woulsd like to know for the purpose of cost projection in mass deployment, as the price difference between the 2538 with 256K and 512K flash is significant
Part Number:TMDSSOLARUINVKIT
Hi Manish,
I've got the reference simulations working that are detailed in the sprabt4a.pdf and I've even managed to get breadboard setup running and tracking phases etc.
I've been looking to increase the 'grid frequency' range by a factor of 10 or more with the idea of adapting the code to monitor some small motors etc.
I've adjusted the LPF cutoff to maintain the 1/sqrt(2) (or lower) and adjusted the PI Gains B0 and B1 using the spll_coeff_compute.xlsx as a guide. After quite a few iterations and adjustments, It seems that I hit a maximum grid frequency of around 500Hz before I can no longer get the PLL to lock.
I've tried to see if switching frequency in the matlab model has an impact by simply scaling it up by a factor of 10 from 10kHz and that doesn't seem to help much.
The picture below shows the error plot at 500Hz, a settling time of 0.025 seconds (B0 = 268.4, B1 = 264.8), LPF coeffs K1 = 0.0715 K2 = -0.8571, Fs= 10kHz
It's clear the PLL doesn't settle within the 25ms so I suspect even at 500Hz it's barely stable.
Do you have any comments or suggestions on the upper frequency limit of the algorithm?
Also for an application where I want to accurately monitor the motor phases, the motors can vary quite a bit in operating frequency so I suspect there's a maximum usable frequency range for the algorithm?
Thanks,
James
Part Number:LM2594HV
For part number LM2594HVM-ADJ/NOPB can you please assist with the below questions? We are evaluating this device to understand the tin whisker risk.
Part Number:LM74
For part number LM74CIM-3/NOPB can you please assist with the below questions? We are evaluating this device to understand the tin whisker risk.
Part Number:CC2530
Tool/software: Code Composer Studio
Hi,
I need to do a time synchronisation of three receivers to measure the relative phase offset.
The receivers needs to start receiving at a time.
Could you help me please?
Part Number:TDC7201-ZAX-EVM
Tool/software: TI C/C++ Compiler
Hi,
I would like to know that which GPIO pin is a MSP_START pin and How can I connect the MSP_START pin to the COMMON_START? How can I modify the MSP430 firmware to generate start on one of the GPIO pins?
Thank you.
Ahmed Syed Fahin
Part Number:AM3352
Tool/software: Linux
Hi
When connecting usb to pc and target board, I want to make target board recognized as serial device.
How do I set it up?
My environment:
ti-sdk-am335x-evm-08.00.00.00
Part Number:TPS57160-Q1
Hi TI Team,
I have some questions about TPS57160-Q1,and I would like to discuss them with you.
The picture below is the circuit design of our company:
Design Reference:
Questions:
When Vin is 16V(power supply) and Vout are floating , Ripple will occur in Vout .
However ,when Vin increased to 16.66V, Vout was normal.
Is this type of problems acceptable?
Tool/software: Code Composer Studio
Hello,
I am trying to add Bluetooth capabilities to a C2000 MCU with a Bluetooth module. I don't want to use BLE; I just want regular Bluetooth. Are there any resources I can use to help me develop a regular-Bluetooth application? As far as I understand, the way BLE works is you guys provide the stack object code to us in CCS, and we build an application on top of it. So if we aren't using the BLE stack, is there a "plain Bluetooth" stack we must use, or does it work a different way than that?
Best,
Edit: I have been doing some more searching on the line, and it seems like the modules just have a Bluetooth "stack" hard-coded onto them, and we communicate with them via wired communication (like UART)
Part Number:LMX2594EVM
Hi,
While testing of LMX2549EVM, i didn't get enough output power at higher frequencies. Please see the below table for your reference.
| Frequency (GHz) | Spectrum Input Power (dBm) | Cable + attenuator Loss | O/P Power@RF OUTAP (dBm) |
| 7 | 1.81 | 1.4 | 3.21 |
| 7.5 | 2.1 | 1.5 | 3.6 |
| 8 | 1.54 | 1.5 | 3.04 |
| 8.5 | 1.55 | 1.5 | 3.05 |
| 9 | 0.9 | 1.7 | 2.6 |
| 9.5 | 0.73 | 1.6 | 2.33 |
| 10 | -0.98 | 1.4 | 0.42 |
| 10.5 | -2.14 | 1.6 | -0.54 |
| 11 | -3.3 | 1.7 | -1.6 |
| 11.5 | -3.92 | 1.7 | -2.22 |
| 12 | -4.77 | 1.5 | -3.27 |
| 12.5 | -5.7 | 1.9 | -3.8 |
| 13 | -6.58 | 2 | -4.58 |
| 13.5 | -9.41 | 2 | -7.41 |
| 14 | -5.32 | 2 | -3.32 |
| 14.5 | -5.57 | 2 | -3.57 |
| 15 | -6.25 | 2.1 | -4.15 |
As per datasheet, at 15GHz i should able to get 2dBm. Can you please help me out?
Tell me how can i get to know whether PLL has lock or not, i mean any indication is there on GUI or EVM board?
Thanks & Regards,
Swarup.
Part Number:BQ76PL455EVM
Hi. The BQ76PL455EVM module has a GUI version of control software, while, in my case, I need to code the commands by myself and sent through UART from a microcontroller (TMS570), is there any resources for programmer? The TI website only shares a simple sample code and a GUI user document, which is far not enough. For example, I maybe need to know some detailed internal software information of BQ76PL455EVM, so that I can access the register.
Thanks for any help.
Part Number:LAUNCHXL-CC2640R2
Tool/software: TI-RTOS
Hi I;m wondering about scanning speed performance .
is it possible that 100 devices are advertise 254 byte data and it change every 1 second (then in 2scond, every device advert 2 frame of PDU) , and every device have to scan all of near devices per a second to scan 2frame of PDU.
maybe maximum number of device is 200~300.
is it possible? or not is there are good idea to scan more then 200 device as fast as device can?
Part Number:TLV320AIC3254
Does TI have any Audio Codec that can implement 256th order FIR Filter ?
I have tried TLV320AIC3254 and PCM5142, but I can only achieve 128th order FIR Filter.
Thanks !
Part Number:DRV8350
Hi,
My customer has the interest about DRV835x series. They want to get the answer to following questions.
Q1. When is the sample available about DRV835x?
Q2. Do you have the automotive version plan? If yes, could you let me know the sample available schedule?
Regards,
Y.Hashimoto
Part Number:CDC3RL02
the previous post stated that the CDC3RL02 can take in an AC-coupled signal. In this case, what is the expected clock output range? We do observed negative voltage at clock output with AC coupled clock input.
However, section 7.3 in the datasheet shows that the CLK_OUT at min 0V.
Part Number:BQ21040
Hi TI,
Thanks for your previous response.

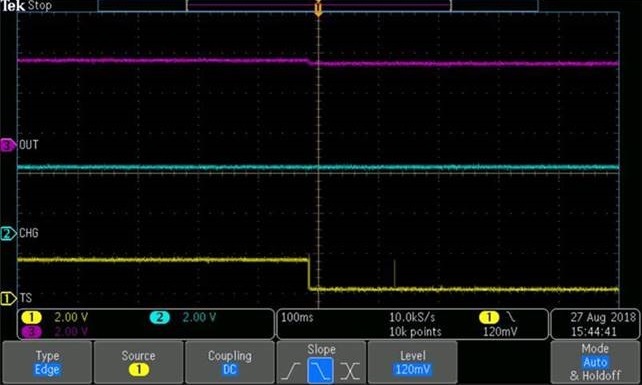

Now I know /CHG will goes low when battey insert even in TTDM mode.
In our device, /CHG doesn't goes low when battery insert.
1. If AC is present, /CHG doesn't goes low when battery insert
2. If insert battery first then insert AC, /CHG goes low
Part Number:TDA2
Tool/software: Code Composer Studio
i make a new eve project use this SDK_VISION_03_02_00_00\ti_components\algorithms\eve_sw_01_18_00_00\kernels\imgsiglib\vcop_median3x3
if i add testvecs\config this file in to the project, IDE tips it need the XDC tools , i sellect yes! then the project cannot compile.
this is the probelm
xdc.tools.configuro: Error: no target named: please use -t, -b, or --cb .xdchelp /eve_exmple1 line 52 C/C++ Problem
None of the currently selected products s...try using a pre-3.30 version of XDCtools.
in my v7 there are 2 xdctools
ti_ccsv7\xdctools_3_32_02_25_core
ti_ccsv7\xdctools_3_50_04_43_core
