Part Number:SN65LVDS19
Hi team,
Customer wants to use SN65LVDS19 in a differential CLK signal path, making use of enable pin to turn on/off signal path.
This will help them to improve isolation.
But they want to know the off-isolation performance of our chip.
Could you show the off-isolation data when dealing with 10MHz/125MHz/250MHz differential CLK signal?
Thank you!
Part Number:TDA2
Tool/software: Linux
Hi Expert,
I'm running Linux Vision SDK v03.02.00(4.4.84) on TDA2Ex.
run usecase: "chains_lvdsVipMultiCam_Sgx3Dsrv"

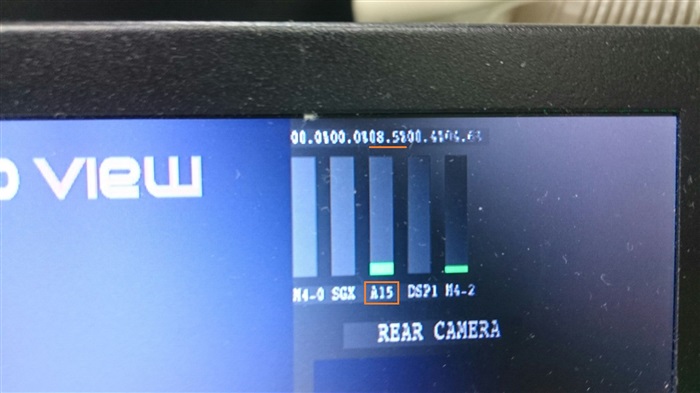

Can get the load of DSP1 and M4-2 as the picture below.
But the value of A15 is fixed, How to modify?

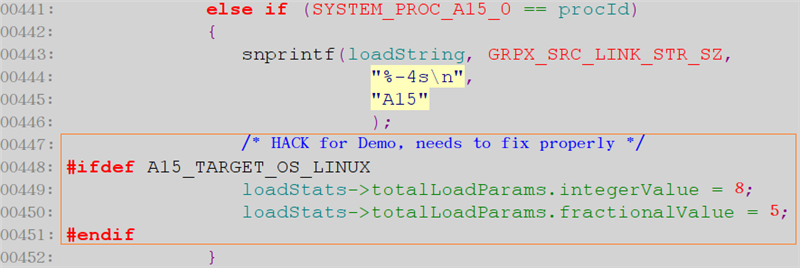

grpxSrcLink_svStandalone_layout.c
Int32 GrpxSrcLink_displaySurroundViewStandaloneStats(GrpxSrcLink_Obj *pObj)
Delete line 449, 450,
The value of A15 is 0.
Could you please give some suggestion here?
Thanks in advance.
Part Number:TMS320F28379D
Tool/software: Code Composer Studio
Hello everyone,
I'm having some problems while running the example timed_led_blink_cpu01 from controlsuite.
I've made some modifications to the original project, like adding to my code an .cmd file (2837x_RAM_lnk_cpu1.cmd) and modified the length of RAMGS4 from 0x001000 to 0x12000, and renamed it to LOG.
After that I've commented the other RAMGS lines until the RAMGS15.
I'm also adding in the LEDBLINK.c code, inside the cpu_timer0_isr void the function logger(), and including the logger files .h and .asm to the project.
When I build the project It doesn't show any error, but it does not work since apparently the code is stuck on the F2837xD_SysCtrl.c code in the 556 line: while(ClkCfgRegs.SYSPLLSTS.bit.LOCKS != 1)
Does anyone knows how to fix and/or why this problem is occuring ?
Thanks in advance,
Izabela.
Part Number:BQ24650
Hi,
I am using BQ24650 Ic for charging the 3.7V, 6600 mAh battery and the input supply form the solar panel is 12V, 30W. I want to charge the battery as well as want to supply the load circuit (Application circuit) of up to 4.2V, How can i make the circuit for this ?

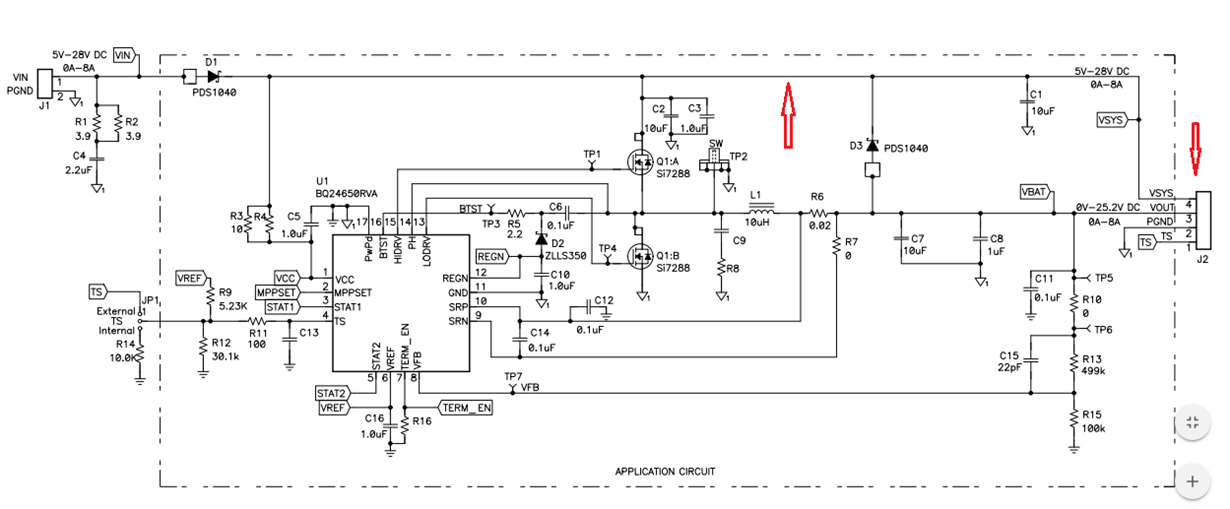

I have changed the value of R2 which was 499k to 79.19k for 3.7V of battery (PFA). For the application circuit (from direct solar panel : Vsys) supply should i connect it to parallel to battery or connect a 4.2V LDO.
Regards
Atul Bhakay
Part Number:TIDA-00554
Dear Sir,
My customer read the photodetector value in the lamp. The value is not consistence with different board.
Test flow:
-input the fixed voltage(0.45V) on sense_1 as channel 2 in waveform below.
-read the photodiode value through NIRSCAN NANO GUI. And the data is different with board. it seems there is 20% deviation with correct value. And the data changes with board.
Can you explain how it reads the sensor data?
How accurate is the result and how to improve it?
BR,
frank
Part Number:ADC32RF80
Hi
I used TSW40RF80EVM with ADC32RF80 for the digitization of the pulses filled with sinuses 1005 M. Then ADC DDC mixed them with 1000M, decimated by 4 and filtered. TSW40rf80evm is connected to the TSW14J56. The sinuses has the equal initial phases, but the sinuses after ADC (captured by High Speed Data Converter) has different phases. How can it be explained? And how can I make phases equal? Thanks.
Hi,
Does TI has Isodriver for IPM module? It's need inverter signal to IPM module(Infineon, Mitsubishi). ISO5852 is similiar but output driving signal is non-inverter.
Part Number:LM5021
Hi, Team
We have a question, if my customer parallel resistor and capacitor in SS pin.
Please refer to as below:
How to calculate the Toff/Ton timing for hiccup mode?
Part Number:DP83822IF
hi
a customer of mine is desinging w/ DP83822IF.
as they plan to use RMII interface, I was asked if the pull-up/-down resistors are required for Hardwar Bootstrap Config. to set the RMII or if it these pins can be left HiZ and then set the config via software (PHY Reset Control Registers)...
I couldn't find it in datasheet, sorry for asking
thanks a lot in advance
KR
Vincenzo
Part Number:TMDS570LS31HDK
Tool/software: Code Composer Studio
Hi,
I'm interested in using a Virtula Machine for my development with CCS 5.5
I'll use the following hardware:
Hercules Safety MCU, TMDS570LS31HDK
Emulator XDS200 USB JTAG (TMDSEMU200-U)
Software:
My host OS iis windows 10 Pro (64bit) with the latest updates.
On the virtual machine I'll install Windows 7 Pro (32/64 bit)
CCS Version: 5.5.0.00077
Which virtual machine software shall I use, in order to have maximum compatibility between my hardware and software?
Virtualbox or VMWare ?
In case of VMWare, Workstation 14 Pro or Workstation 14 Player should I use?

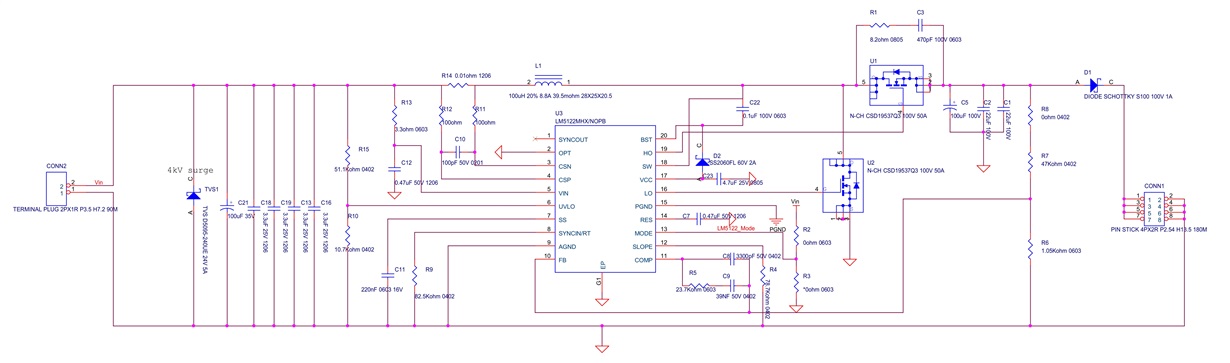

Part Number:LM5122
DC power supply setting is15V.
DC power supply would become 13V after power on, and the voltage and current would always jump.
The DC-DC Converter board turns out the voltage without boosting but the voltage drops to 10V.
LM5122 expected function: input 8V~20V, output 55V
Please help us to help clarify the problem.
Thank you....
Best Regards,
Every_Hsiao
Part Number:CC2530
I have used OTA Server and OTA Dongle to OTA update for an End Device node. Anyone please tell me why 0.01% complete in the figure below is not increase, while I have waited for a long time?
Part Number:CC2640R2F
Good day,
When can we expect to get the BLE mesh stack from TI? We currently use a TI Eddystone stack modified to allow connectability but it does not work great. We really need the TI stack ASAP as TI's competition (SiLabs) already have this and our products are falling behind without this functionality.
Please can you let me know about this?
Thank you,
Phillip Jacobs
