Part Number: CC1125DK
Hi,
I am using cc1125 chipset with configuration 4GFSK, 25KHz BW (Symbol Rate: 12 ksps).

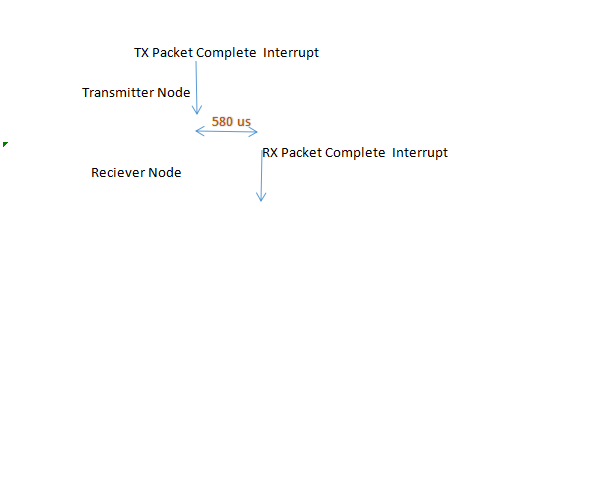

I observed approx. 580 us difference in Tx complete and Rx complete interrupt (RxTx interrupt on GPIO0) . The interrupt was observed on oscilloscope.
Kindly let me know the reason of such difference. This difference is quite high. How to minimize?
